White And Blue 2 Ports 10P8C F3.05 Shielded RJ45 Jack / Modular Ethernet Jack

    Buy cheap White And Blue 2 Ports 10P8C F3.05 Shielded RJ45 Jack / Modular Ethernet Jack from wholesalers

    Buy cheap White And Blue 2 Ports 10P8C F3.05 Shielded RJ45 Jack / Modular Ethernet Jack from wholesalers
    • Buy cheap White And Blue 2 Ports 10P8C F3.05 Shielded RJ45 Jack / Modular Ethernet Jack from wholesalers
    • Buy cheap White And Blue 2 Ports 10P8C F3.05 Shielded RJ45 Jack / Modular Ethernet Jack from wholesalers
    • Buy cheap White And Blue 2 Ports 10P8C F3.05 Shielded RJ45 Jack / Modular Ethernet Jack from wholesalers
    • Buy cheap White And Blue 2 Ports 10P8C F3.05 Shielded RJ45 Jack / Modular Ethernet Jack from wholesalers
    • Buy cheap White And Blue 2 Ports 10P8C F3.05 Shielded RJ45 Jack / Modular Ethernet Jack from wholesalers
    • Buy cheap White And Blue 2 Ports 10P8C F3.05 Shielded RJ45 Jack / Modular Ethernet Jack from wholesalers

    White And Blue 2 Ports 10P8C F3.05 Shielded RJ45 Jack / Modular Ethernet Jack

    Ask Lasest Price
    Brand Name : CSCE
    Model Number : 56C-320811111X01
    Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 150K pcs/day
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    White And Blue 2 Ports 10P8C F3.05 Shielded RJ45 Jack / Modular Ethernet Jack

    2 Ports RJ45 Connector 10P8C F3.05 Connector Modular Jacks Ethernet RJ45 Connector

    Product Description:


    Retention Strength7.7KG.F MIN Between Jack And Plug
    Contact Resistance30milliohm Max
    Withstand Voltage1000V AC 50Hz or 60Hz,1MIN.
    Contact MaterialDiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
    Current Rating1.5A
    Storage Temperature-40℃ to +85℃
    Operation Temperature-40℃ to +85℃
    Voltage Rating125v AC
    Mating/Unmating Force2.2KG.F MAX.
    Insulation Resistance500 MΩ MIN @ 500V DC.
    Insert MaterialUL94V-0
    Operating Life750 Cycles MIN.

    Quick Details:


    Specification:RJ45 Single portCross Part NO:56C-320811111X01
    Mounting:Thru-hole R/ASamples:Available 2-3 Pcs

    About us


    CSCE Technologies is a professional manufacturer and supplier served in design, production, sale and distribution of more than 1000+ high quality fiber optic products for global optical communication, with its headquarter in Zhejiang, China.

    With our advanced production facilities and experienced engineering team who are mostly background from worldwide leading companies for years in the fiber optic field, it ensures us the excellent quality products under the fast delivery, and provides our customers the most suitable solution for their unique project application.

    At CSCE, we keep thinking how to serve better and exceed our customers' needs with understanding they are the essential of our success. CSCE is serving our global clients through China local team and global local partners for global communication network market. We are expecting to work with you for a win-win ahead.


    Our services


    1. OEM, ODM are welcome.

    You can use your own brand or ours. If you use our brand, our professional design team will help you design the packing.Our research team will research new formula according to your market.


    2. Free sample will be provided.
    Usually, we make free samples for you, while you afford shipping charge of samples. But when the sample need new mold, you will afford the mold charge. And after we make a deal, the sample fee will be returned to you.


    3. Welcome to visit.
    When you come to our company visit us, we will arrange car for picking up and help you book hotel. If you want to visit the local scenic spot, our colleague will accompany you.


    4. After-service.
    a. In production and after delivery, we will track on time and tell your goods situation.
    b. When the goods arrived, if you find any design and quality question, or difference from your samples, please feel free to contact us, we will find the question and solve it with you.


    FAQ


    1. How can i get a sample?

    A: just check with our sales.


    2. How to develop a new product base on an idea?

    A: Tell us what you want, Then we will design it for free.


    3. How about OED,ODM?

    A: 14 years experiences in OEM,ODM.


    4. How to reduce your risk?

    A: Check the sample before order.


    5. How about the after-sale service?

    A: Just tell us the problem after you receive the products.

    Then we’ll help you deal with it together.

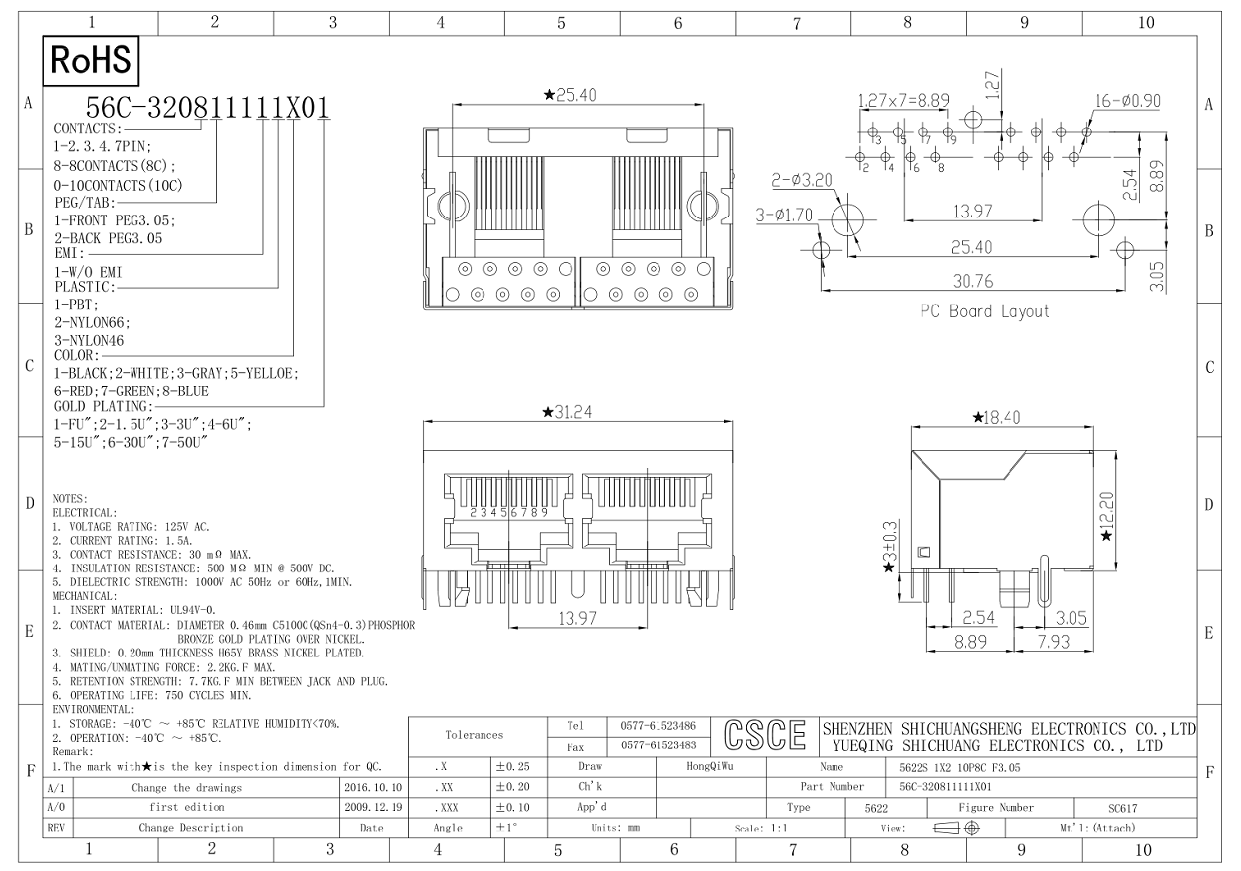

    Product Drawing
