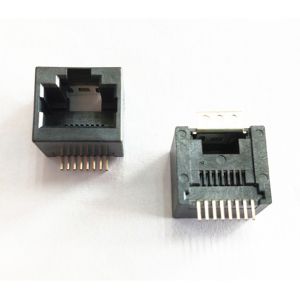

SMT RJ45 CONNECTOR 8P8C Insert vertically 180 degrees Housing Black
LCP
Product Specification:
| Specification: | SMT RJ45 Connector | Cross Part NO: | SC52S811SXX31 |
| Mounting: | Thru-hole R/A | Samples: | Available 2-3 Pcs |
| Latch: | Tab up | Files: | PDF/3D/ISG/Stp/Step/Datasheet |
Product Details:
| Retention Strength | 7.7KG.F MIN Between Jack And Plug |
| Contact Resistance | 20milliohm Max |
| Withstand Voltage | 1000V AC 50Hz or 60Hz,1MIN. |
| Contact Wire | 0.35mm Diameter Phosphor Bronze(C5191) Optional Gold Plating |
| Current Rating | 1.5AMPS |
| Gold Plating | 3 Inch,6 Inch,15 Inch,30 Inch,50 Inch |
| Metal Gasket | 0.44mm Thickness,Nickel Plated Copper Allo(C2680) |
| Voltage Rating | 125v AC |
| Mating/Unmating Force | 2.2KG.F MAX. |
| Insulation Resistance | 500 MΩ MIN @ 500V DC. |
| Housing | LCP,UL94V-0 |
| Operating Life | 750 Cycles MIN. |
Why Choose CSCE
- A company of connector manufacture
- More than 14years –Yueqing Shichuang Electronics Co.,Ltd is founded
in 2005.
- 3 factory –Yueqing Shichuang Electronic Co.,Ltd have owns 3 factory
in Yueqing,Shenzhenn, Jiangxi.
3. 3000 workers - We have over 3000 workers.
4. Have R&D dept, engineer can design products as you need,
develop tooling as customer require.
5.180,000 square meters - The area of CSCE is 180,000 square
meters.
7.Have plating factory, can plate Sn,Nickel,gold,Palladium Gold
wire,flat pin,shield, terminal etc products as customer need.
8. Certification - We have passed ISO9001-2000 Quality Management
System,ISO14001 Environment Management System, and UL, ROHS…
About us
CSCE Technologies is a professional manufacturer and supplier
served in design, production, sale and distribution of more than
1000+ high quality fiber optic products for global optical
communication, with its headquarter in Zhejiang, China.
With our advanced production facilities and experienced engineering
team who are mostly background from worldwide leading companies for
years in the fiber optic field, it ensures us the excellent quality
products under the fast delivery, and provides our customers the
most suitable solution for their unique project application.
At CSCE, we keep thinking how to serve better and exceed our
customers' needs with understanding they are the essential of our
success. CSCE is serving our global clients through China local
team and global local partners for global communication network
market. We are expecting to work with you for a win-win ahead.
Our services
1.OEM, ODM are welcome.
You can use your own brand or ours. If you use our brand, our
professional design team will help you design the packing.Our
research team will research new formula according to your market.
2.Free sample will be provided.
Usually, we make free samples for you, while you afford shipping
charge of samples. But when the sample need new mold, you will
afford the mold charge. And after we make a deal, the sample fee
will be returned to you.
3.Welcome to visit.
When you come to our company visit us, we will arrange car for
picking up and help you book hotel. If you want to visit the local
scenic spot, our colleague will accompany you.
4.After-service.
a. In production and after delivery, we will track on time and tell
your goods situation.
b. When the goods arrived, if you find any design and quality
question, or difference from your samples, please feel free to
contact us, we will find the question and solve it with you.
Product Drawing
