DIP 4 Pin USB Male Female Connector USB 2.0 90 Degree Extraction Force 1.02Kg MIN

    Buy cheap DIP 4 Pin USB Male Female Connector USB 2.0 90 Degree Extraction Force 1.02Kg MIN from wholesalers

    Buy cheap DIP 4 Pin USB Male Female Connector USB 2.0 90 Degree Extraction Force 1.02Kg MIN from wholesalers
    • Buy cheap DIP 4 Pin USB Male Female Connector USB 2.0 90 Degree Extraction Force 1.02Kg MIN from wholesalers
    • Buy cheap DIP 4 Pin USB Male Female Connector USB 2.0 90 Degree Extraction Force 1.02Kg MIN from wholesalers

    DIP 4 Pin USB Male Female Connector USB 2.0 90 Degree Extraction Force 1.02Kg MIN

    Ask Lasest Price
    Brand Name : CSCE
    Model Number : SUSB-1W1142-049ZK
    Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 150K pcs/day
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    DIP 4 Pin USB Male Female Connector USB 2.0 90 Degree Extraction Force 1.02Kg MIN

    DIP 90 Degrees AF USB 2.0 Connector For Data Transmission Charging

    Product Description:


    Contact Resistance30 Milliohms MAX
    Insulation Resistance1000 Megohms MIN
    Dielectric Withstanding Voltage500V AC MIN
    Material HousingPBT+30%GF;UL94-V0
    ColarWhite
    Material ContactCopper Alloy
    Material ShellCopper Alloy
    Maximum Rage12.5mm
    Extraction Force1.02Kg MIN At A
    Insertion Force3.75Kg Maximu At A
    Operation Temperature-20℃-+85℃
    Retention ForceMIN .100gf/PIN
    Durability6000 Cycles

    Quick Details:


    Specification:USB ConnectorCross Part NO:SUSB-1W1142-049ZK
    Shell:Copper AlloySamples:Available 2-3 Pcs

    Why choose us

    1. Have a strong research and development ability for a new product
    2. Equipment and manufacturing ability for would
    3. Competitive price , and in time delivery well-selling in both domestic and foreign markets
    4. OEM services with agreed quantity by both parties.

    5. Reasonable prices, very competitive and reliable.

    6. Excellent sales team and tech team ready to serve you.

    Production Ability


    The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.

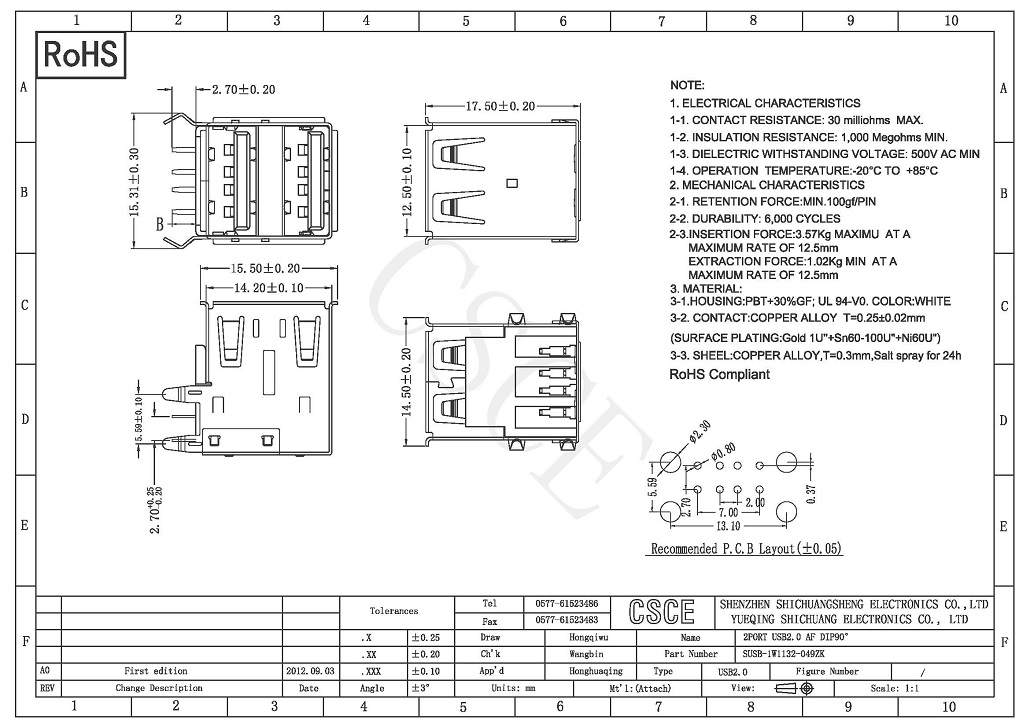

    Product Drawing:
