10/100/1000 Base - Tx Magnetic RJ45 Jack Shielded 2*4 Port With
Leds |
Product Details:
| Material Housing | Thermoplastic,PBT,UL94V-0,Black |
| Material Contact/Shield | Copper Alloy |
| Material Shield Plating | Nickel |
| Material Contact Plating | Selective gold 6u'' Min |
| Turn Ratio(+/-2%) | 1CT:1CT |
| DCR | 1.2OHM Max |
| Inductance OCL | 350uH Min @100KHz/0.1V DC Bias 8mA |
| Insertion Loss | -1.0dB Max @1.0-100MHz |
| -1.2dB Max @100-125MHz |
| Return Loss | -20dB Min @1-30MHz |
| -16dB Min@30-60MHz |
| -12dB Min @60-80MHz |
| -10dB Min @80-100MHz |
| Cross Talk | -40dB Min @1-30MHz |
| -35dB Min @30-60MHz |
| -30dB Min @60-100MHz |
| Storage Temperature | -40℃-+80℃ |
| Common Mode Rejection | -30dB Min @1-50 MHz |
| -20dB Min @50-150 MHz |
| Hipot Test | 1500Vrms 1mA Max |
Product Specification:
| Specification: | Magnetic RJ45 Jack | Cross Part NO: | SC1017-S59(119-19) |
| Latch: | Tab Down | Samples: | Available 2-3 Pcs |
Our advantage:
1. Competitive price advantage helps to save your purchase cost and
your precious time.
We wholesale and distribute new,original &famous brand
Electronic Components all over the world.
2. Own the international advanced testing equipment of electronic
components and scientific storage system to ensure the quality
stability.
3. Excellent elite team, more than 14 years seniority, and a good
understanding of international market trends.
Our Services:
1. Factory price
• Own production workers, production equipment and engineering
technology team
• New original with low and discount price
2. Safe & Quality Reliability
• Quality insurance system for superb product quality
• On Time, Every Time provision of Quality Components.
3. Customer Friendly Services
• Support in many Languages website, more convenience & fast
services.
FAQ:
Q: Can I get some samples?
A: Yes, sample order is available, some samples are free. and it
will be freight collect payment.
Q : How long is your lead time?
A: Normally, our lead time is 5-7 days according to different
products.
Q: What's your payment term?
A: We accept TT/LC/DP/DA/Paypal/Western Union/MoneyGram
Q: Why choose our company?
A: 1. Professional manufacturer since 2005, provide various kinds
of connectors and LAN Transformer
2. Good quality, competitive price with best service.
3. Available for ODM/OEM order.

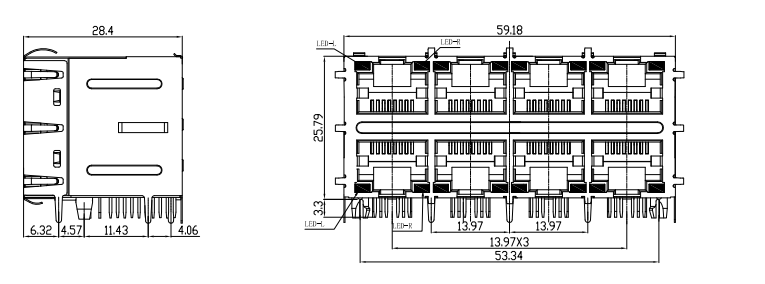

Product Drawing:
