| Vertical PBT RJ45 Multiple Port Connectors Rated Voltage 125V For
Ethernet Interface |
Product Specification:
| Specification: | RJ45 Shielded Jack | Cross Part NO: | 52F-38880311X01 |
| Mounting: | Thru-hole R/A | Samples: | Available 2-3 Pcs |
| Latch: | Tab up | Files: | PDF/3D/ISG/Stp/Step/Datasheet |
Product Details:
| 1. Current Rating | 1.5A |
| 2. Voltage Rating | 125v |
| 3. Contact Resistance | 30milliohm Max |
| 4. Withstand Voltage | 1000V AC 50Hz or 60Hz,1MIN. |
| 5. Insulation Resistance | 500 MΩ MIN @ 500V DC. |
| 6. Mating/Unmating Force | 2.2KG.F MAX. |
| 7. Retention Strength | 7.7KG.F MIN Between Jack And Plug |
| 8. Operating Life | 750 Cycles MIN. |
| 9. Operation Temperature | ﹣40℃ to +85℃ |
| 10. Storage Temperature | ﹣40℃ to +85℃ |
| 11. Housing Material | PBT/PA66/PA46 |
| 12. Contact Material | DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze |
| 13. Contact Mating Area Plating | Gold/3u"/6u"/15u"/30u" |
| 14. Shell Material | Brass |
| 15. Shell Plating | Ni Plating |
Competitive Advantage
14 years production experience,
3000 staff,
100% test
Flexible delivery time
Our Services
1. Factory price
• Own production workers, production equipment and engineering
technology team
• New original with low and discount price
2. Safe & Quality Reliability
• Quality insurance system for superb product quality
• On Time, Every Time provision of Quality Components.
3. Customer Friendly Services
• Support in many Languages website, more convenience & fast
services.
FAQ
Q: Can I get some samples?
A: Yes, sample order is available, some samples are free. and it
will be freight collect payment.
Q : How long is your lead time?
A: Normally, our lead time is 5-7 days according to different
products.
Q: What's your payment term?
A: We accept TT/LC/DP/DA/Paypal/Western Union/MoneyGram
Q: Why choose our company?
A: 1. Professional manufacturer since 2005, provide various kinds
of connectors and LAN Transformer
2. Good quality, competitive price with best service.
3. Available for ODM/OEM order.

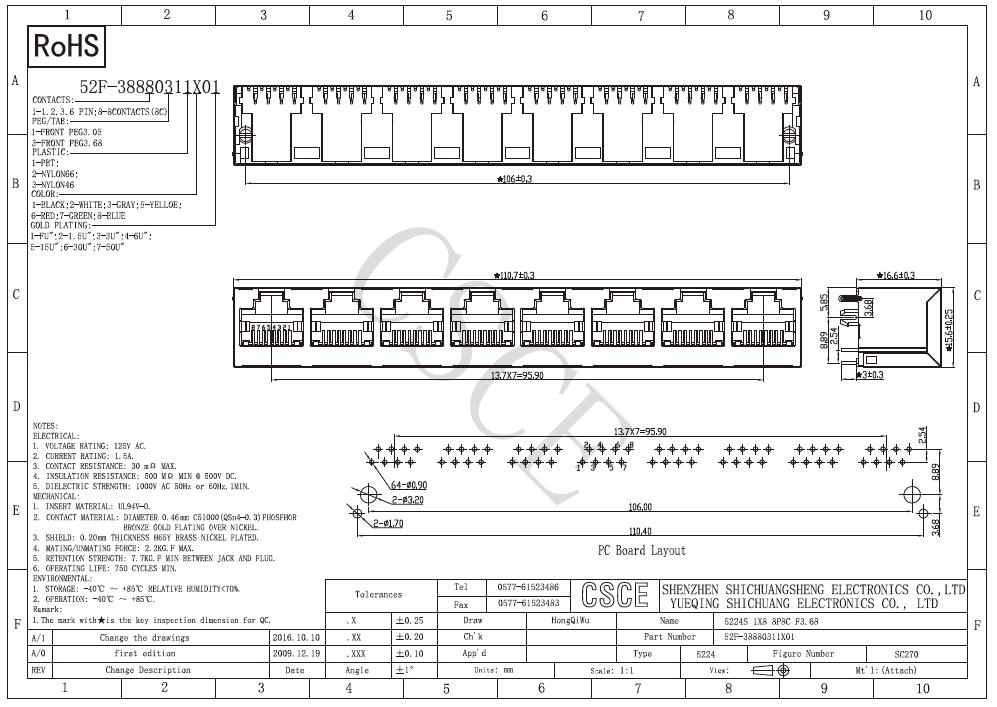

Product Drawing:
