180 Degree USB Male Female Connector White Color For Data Transmission Charging

    Buy cheap 180 Degree USB Male Female Connector White Color For Data Transmission Charging from wholesalers

    Buy cheap 180 Degree USB Male Female Connector White Color For Data Transmission Charging from wholesalers
    • Buy cheap 180 Degree USB Male Female Connector White Color For Data Transmission Charging from wholesalers
    • Buy cheap 180 Degree USB Male Female Connector White Color For Data Transmission Charging from wholesalers

    180 Degree USB Male Female Connector White Color For Data Transmission Charging

    Ask Lasest Price
    Brand Name : CSCE
    Model Number : SUSB-1W1142-041ZK
    Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 150K pcs/day
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    180 Degree USB Male Female Connector White Color For Data Transmission Charging

    USB 2.0 AF Type 180 Degree For Data Transmission Charging Connectors

    Quick Details:


    Specification:USB ConnectorCross Part NO:SUSB-1W1142-041ZK
    Shell:Copper AlloySamples:Available 2-3 Pcs

    Product Description:


    Contact Resistance30 Milliohms MAX
    Insulation Resistance1000 Megohms MIN
    Dielectric Withstanding Voltage500V AC MIN
    Material HousingPBT+30%GF;UL94-V0

    Colar

    White
    Material ContactCopper Alloy
    Material ShellCopper Alloy
    Maximum Rage12.5mm
    Extraction Force1.02Kg MIN At A
    Insertion Force3.75Kg Maximu At A
    Operation Temperature-20℃-+85℃
    Retention ForceMIN .100gf/PIN
    Durability6000 Cycles

    Competitive Advantage:


    CSCE has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, zero defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,please do not hesitate to contact us by email or Trade Manager. We 'll get back to you in 24 hours.


    14 Years Experience


    Our company since 2005 network connector production in the past 14 years,only focus on network connector design and development and production and sales.


    OEM Services


    For high-quality, high reliability and reasonable price network connector products,and more than the word’s top 500 OEM manufacturers recognized.


    Production Ability


    The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.

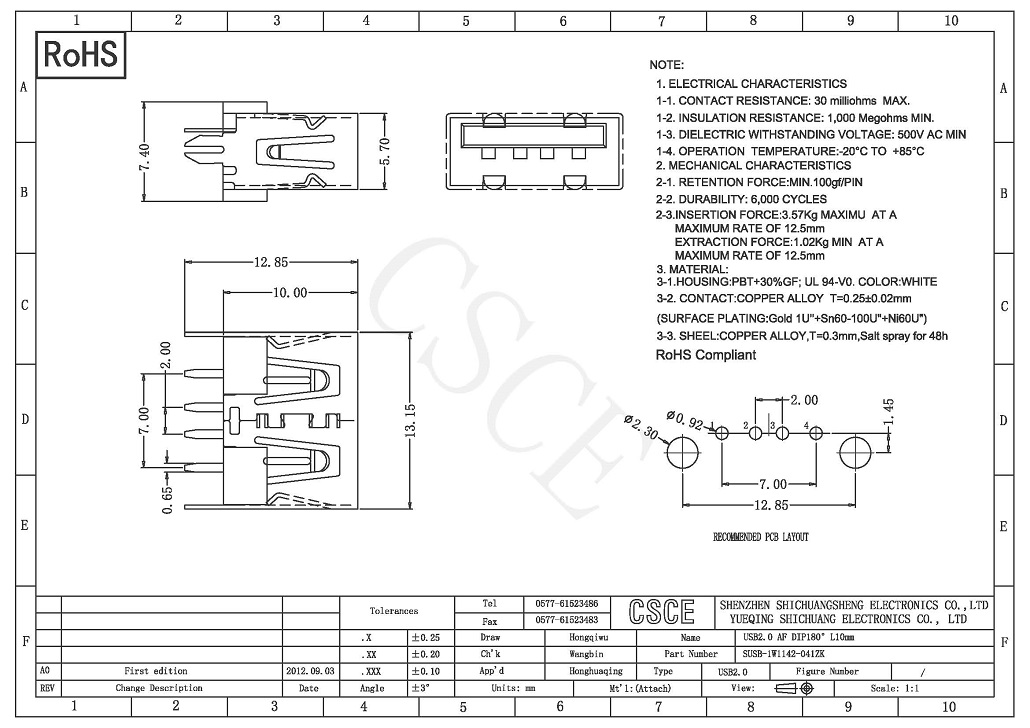

    Product Drawing:
