Type AF SMT 90 Degree USB Connector , Micro USB 2.0 Connector Current Rating 1.5A

    Buy cheap Type AF SMT 90 Degree USB Connector , Micro USB 2.0 Connector Current Rating 1.5A from wholesalers

    Buy cheap Type AF SMT 90 Degree USB Connector , Micro USB 2.0 Connector Current Rating 1.5A from wholesalers
    • Buy cheap Type AF SMT 90 Degree USB Connector , Micro USB 2.0 Connector Current Rating 1.5A from wholesalers
    • Buy cheap Type AF SMT 90 Degree USB Connector , Micro USB 2.0 Connector Current Rating 1.5A from wholesalers

    Type AF SMT 90 Degree USB Connector , Micro USB 2.0 Connector Current Rating 1.5A

    Ask Lasest Price
    Brand Name : CSCE
    Model Number : SUSB-3B1112-042ZK
    Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 150K pcs/day
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    Type AF SMT 90 Degree USB Connector , Micro USB 2.0 Connector Current Rating 1.5A

    SMT USB 2.0 Type-AF 90 Degree Sink Micro USB Female Jack Plug Connector

    Product Description:


    Current Rating1.5A
    Voltage Rating30V DC
    Contact Resistance30 Milliohms MAX
    Dielectric Withstanding Voltage500 V AC At Sea Levol
    Finish ShellNickel Plating
    Finish Contact

    Piated Gold in Mating Area

    Tin On Solder Talls

    Material Housing

    Hing Temperature Tnermaplastics

    UL94V-0 LCP Black

    Mate Force3.57 kgf (MAX)
    Unmate Force1.02 kgf (MIN)
    Terminal Retenion1.0 kgf (MIN0
    Lusulation Resistance1000 MEGA ohms MIN
    Material ContactCopper Alloy C2680
    Material ShellCopper Alloy C2680

    Product Details:


    Specification:USB ConnectorCross Part NO:SUSB-3B1112-042ZK
    Shell:Copper AlloySamples:Available 2-3 Pcs

    FAQ


    1. When will you ship the goods out if i send payment now?
    Usually ,We will delivery out them 2-3 Week later after payment received.if the PO is very big ,we need more time to produce .


    2. Is your goods tested before shipping?
    Yes,we test every item at least 3 times before shipping,please do not worry about the quality problems,you can buy with confidence.


    3. I am new buyer ,how can i buy from you?
    You tell us what you need ,we send you offer,if you think the offer is good,our sales send you company invoice including all details such as payment terms etc ,then we ship to you.


    Why choose us

    1. Have a strong research and development ability for a new product
    2. Equipment and manufacturing ability for would

    3. Competitive price , and in time delivery well-selling in both domestic and foreign market

    4. Reasonable prices, very competitive and reliable.

    5. Excellent sales team and tech team ready to serve you.

    6.Fast delivery.

    7. OEM services with agreed quantity by both parties.

    8. We hope to make long term business cooperation with all our customers.

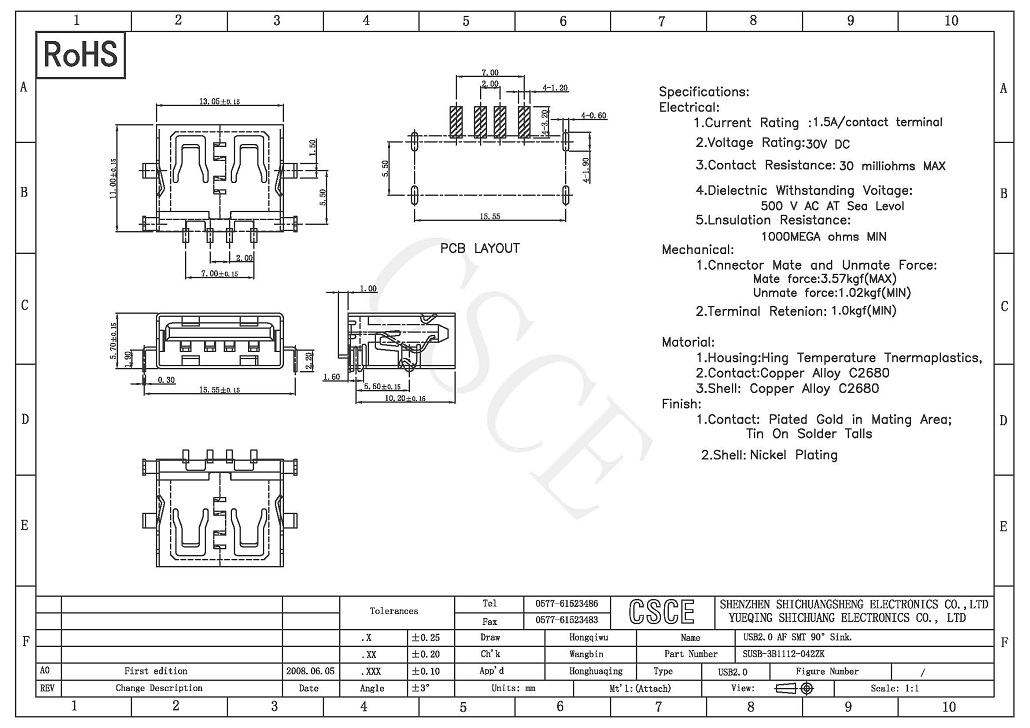

    Product Drawing:
