5521Series 4P4C Female Socket Connectors RJ11 Modular Jack Single Port

    Buy cheap 5521Series 4P4C Female Socket Connectors RJ11 Modular Jack Single Port from wholesalers

    Buy cheap 5521Series 4P4C Female Socket Connectors RJ11 Modular Jack Single Port from wholesalers
    • Buy cheap 5521Series 4P4C Female Socket Connectors RJ11 Modular Jack Single Port from wholesalers

    5521Series 4P4C Female Socket Connectors RJ11 Modular Jack Single Port

    Ask Lasest Price
    Brand Name : CSCE
    Model Number : 55A-114411X01
    Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 150K pcs/day
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    5521Series 4P4C Female Socket Connectors RJ11 Modular Jack Single Port

    5521Series 4P4C Female Socket Connectors RJ11 Modular Jack Single Port

    Quick Details:


    Specification:RJ11 Single portCross Part NO:55A-114411X01
    Mounting:Thru-hole R/ASamples:Available 2-3 Pcs

    About us


    CSCE Technologies is a professional manufacturer and supplier served in design, production, sale and distribution of more than 1000+ high quality fiber optic products for global optical communication, with its headquarter in Zhejiang, China.

    With our advanced production facilities and experienced engineering team who are mostly background from worldwide leading companies for years in the fiber optic field, it ensures us the excellent quality products under the fast delivery, and provides our customers the most suitable solution for their unique project application.

    At CSCE, we keep thinking how to serve better and exceed our customers' needs with understanding they are the essential of our success. CSCE is serving our global clients through China local team and global local partners for global communication network market. We are expecting to work with you for a win-win ahead.


    FAQ


    *Q:Can I get samples from you?

    A:We are honored to offer you samples for quality check.


    *Q:What parts are manufactured by you?

    A:All of frame parts are manufactured by us.


    *Q:What's the leading time? (How long do you need to prepare my goods?)

    A:5 days for sample orders. 15 days for mass production orders (based on different quantities)


    *Q:How long do I need to wait before my goods arrive?

    A:3-5 days for international express. 5-7 days for air transportation, 15-30 days for sea transportation.


    Product Description:


    Retention Strength7.7KG.F MIN Between Jack And Plug
    Withstand Voltage1000V AC 50Hz or 60Hz,1MIN.
    Storage Temperature﹣40℃ to +85℃
    Contact Resistance30milliohm Max
    Mating/Unmating Force2.2KG.F MAX.
    Operation Temperature﹣40℃ to +85℃
    Insert MaterialUL94V-0
    Operating Life750 Cycles MIN.
    Contact MaterialDiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
    Insulation Resistance500 MΩ MIN @ 500V DC.
    Current Rating1.5A
    Voltage Rating125v AC

    Competitive Price And Service


    • Provide New Design For Customer Requirements

    • Delivery Time:2-3 Weeks After Orders

    • Free Samples Are Available


    Features:


    1. All materials comply with ROHS
    2. High-wearing feature
    3. OEM & ODM are both available.
    4. Quality Assurance, 36 months warranty.
    5. Riveting machine was invented by us.
    6. We do lots of research and development in these area, if you meet any difficulties, feel free to contact us.

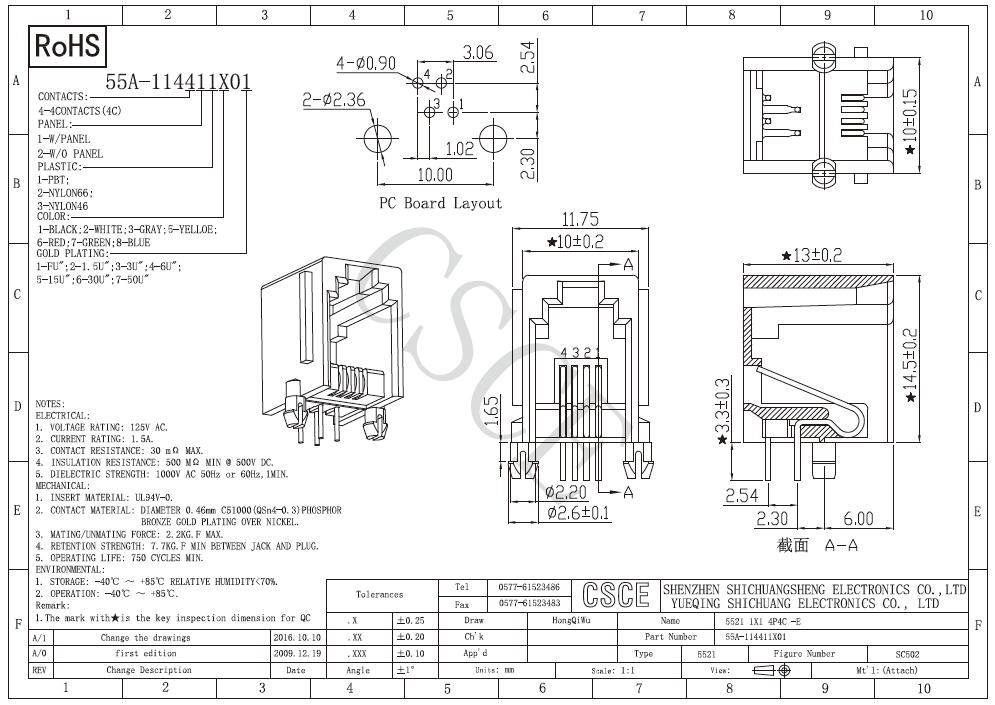

    Product Drawing:
