6 Pins RJ11 Modular Jack / Custom Single Port Unshield RJ11 Phone Jack Connector

    Buy cheap 6 Pins RJ11 Modular Jack / Custom Single Port Unshield RJ11 Phone Jack Connector from wholesalers

    Buy cheap 6 Pins RJ11 Modular Jack / Custom Single Port Unshield RJ11 Phone Jack Connector from wholesalers
    • Buy cheap 6 Pins RJ11 Modular Jack / Custom Single Port Unshield RJ11 Phone Jack Connector from wholesalers
    • Buy cheap 6 Pins RJ11 Modular Jack / Custom Single Port Unshield RJ11 Phone Jack Connector from wholesalers

    6 Pins RJ11 Modular Jack / Custom Single Port Unshield RJ11 Phone Jack Connector

    Ask Lasest Price
    Brand Name : CSCE
    Model Number : UK 01-661201
    Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 150K pcs/day
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    6 Pins RJ11 Modular Jack / Custom Single Port Unshield RJ11 Phone Jack Connector

    UK Jack-DJ 6 Pins 6 Contacts Custom Single Port Unshield Rj11 Phone Jack Connector


    Product Description:


    Retention Strength7.7KG.F MIN Between Jack And Plug
    Withstand Voltage1000V AC 50Hz or 60Hz,1MIN.
    Storage Temperature-40℃ to +85℃
    Contact Resistance30milliohm Max
    Mating/Unmating Force2.2KG.F MAX.
    Operation Temperature-40℃ to +85℃
    Insert MaterialUL94V-0
    Operating Life600 Cycles MIN.
    Contact MaterialPhospho Bronze T=0.4mm
    Insulation Resistance500 Megohms MIN @ 500V DC.
    Current Rating1.5AMP
    Voltage Rating125 VAC RMS

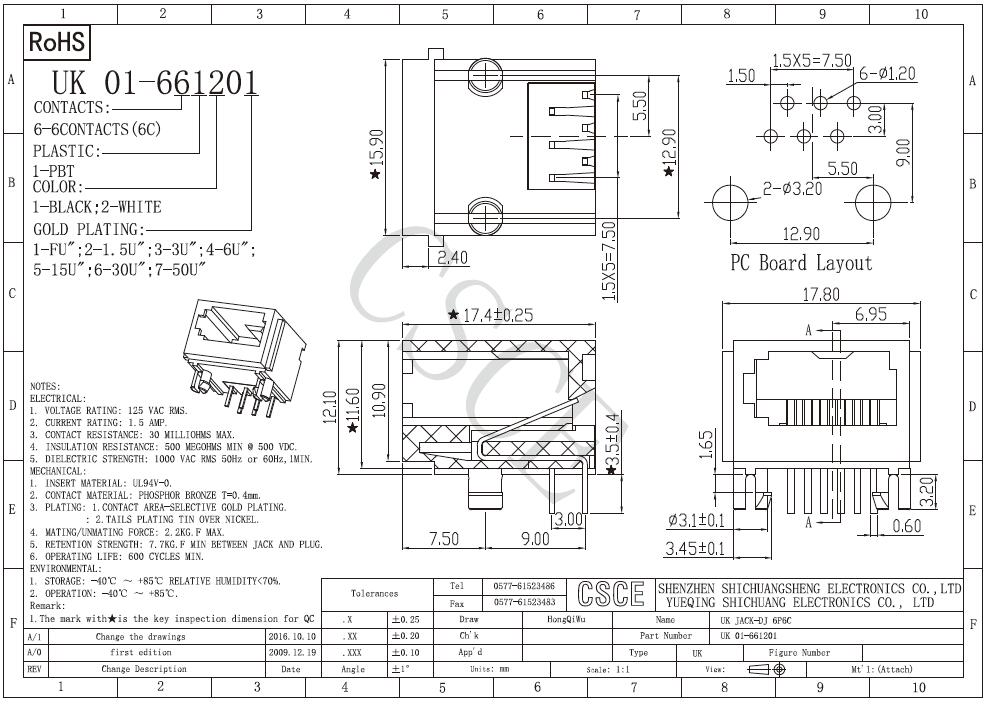

    Product Drawing

    Why choose us


    1. Have a strong research and development ability for a new product
    2. Equipment and manufacturing ability for would
    3. Competitive price , and in time delivery well-selling in both domestic and foreign markets.
    4. Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .
    5. Reasonable prices, very competitive and reliable.
    6. Excellent sales team and tech team ready to serve you.
    7. Fast delivery.
    8. OEM services with agreed quantity by both parties.
    9. Specializes in the development , design , production and sale of communication network connectors .
    10. We hope to make long term business cooperation with all our customers

    Main Customers


    HisenseSkyworthFOXCONNJEZETEKTCLNEC
    TENDAHUMAXPANASONICHUAWEICIGTwoWing

    Our Team


    We can turn your vision into reality. Thank you for visit. For any further information, please feel free to contact us.


    Our Services


    Customer Satisfaction:Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.


    Payment Terms:There are many payment methods available such as TT/LC/DP/DA/Paypal/Western Union/Money Gram


    Return Policy:If you want to exchange your items received ,you must contact us within 5 days of the receipt of your order .And you should pay additional shipping fees incurred and items returned should be kept in their original status.


    Feedback:Since your feedback is very important to our bushiness's development ,we sincerely invite you to leave positive feedback for us if you are satisfied with our products and service ,it will just take you one minute .Thanks a lot !


    Professional Certification

    • ISO 9001:2008

    • UL Certification

    • Active Environmental Policy


    Competitive Advantage:


    CSCE has various types of appearance and many kinds of internal schematic products,high quality,

    customer firstly ,100% test, 0 defect, short lead time are our best advantages.


    What's the Price?


    Some part's price is unstable according to the market, please feel free to contact us for the Latest and Best price.


    What's the Payment Method?


    1. TT/LC/DP/DA/Paypal/Western Union/Money Gram

    2. The buyer is responsible for all the shipping cost incurred.

    3. If you prefer to other payment terms, please contact us.


    CSCE Corporate Policy


    • The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

    Through Continuous Improvements In Quality, Delivery And Service

    • CSCE Is Committed To And Expects Quality Performance From Every Employee

    • The Company Standard Is Defect-Free Products And Services.
