| Half Shielded RJ45 Modular Jack With W / Panel Through Mount
Connector CE Approved |
Product Details:
| Voltage rating | 125 VAC RMS |
| Current rating | 1.5 AMP |
| Contact resistance | 30 Milliohms max |
| Insulation resistance | 500 Megohms min @ 500 VDC |
| Dielectric strength | 1000 VAC rms 50Hz or 60Hz,1min |
| Insert material | UL94V-0 |
| Contact material | Phosphor bronze T=0.35mm |
| Plating | Contact area-selective gold plating |
| Mating force | 2.2KG.F max |
| Retention strength | 7.7KG.F min between jack and plug |
| Operation life | 600 Cycles min |
| Storage Temperature | ﹣40℃ to +85℃ |
| Operation Temperature | ﹣40℃ to +85℃ |
Product Specification:
| Specification: | RJ45 Modular Jack | Cross Part NO: | 57B-28811X01S |
| Mounting: | Thru-hole R/A | Samples: | Available 2-3 Pcs |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete
Magnetic Transformers
100% Guarantee Qualtiy
• Manufactured Under Strict Controls.
• 100% Tested (Not Just Batch Tested)
• CSCE Is OEM Of TE (Tyco) For 10 Years
• Successful Customer: Texas Instruments Samsung Cisco Siemens And
Intel…
• Quality Guarantee:14Years
Product application:
Free for network and communication device sas HUB, PC card, switch,
router, PC board, SDH, PDH, IP phone, x DSL modem, call center
solution, call set-top box, VOIP gateway, setup protocol gateway,
fast Ethernet switch ...
Our Services:
Factory price
• Own production workers, production equipment and engineering
technology team
• New original with low and discount price
Safe & Quality Reliability
• Quality insurance system for superb product quality
• On Time, Every Time provision of Quality Components.
Customer Friendly Services
• One stop solution personalised to your unique requirements.
• Support in many Languages website, more convenience & fast
services.
FAQ
*Q: Can I get samples from you?
A: We are honored to offer you samples for quality check.
*Q: What parts are manufactured by you?
A: All of frame parts are manufactured by us.
*Q: What's the leading time? (How long do you need to prepare my
goods?)
A: 5 days for sample orders. 15 days for mass production orders
(based on different quantities)
*Q: How long do I need to wait before my goods arrive?
A: 3-5 days for international express. 5-7 days for air
transportation, 15-30 days for sea transportation.

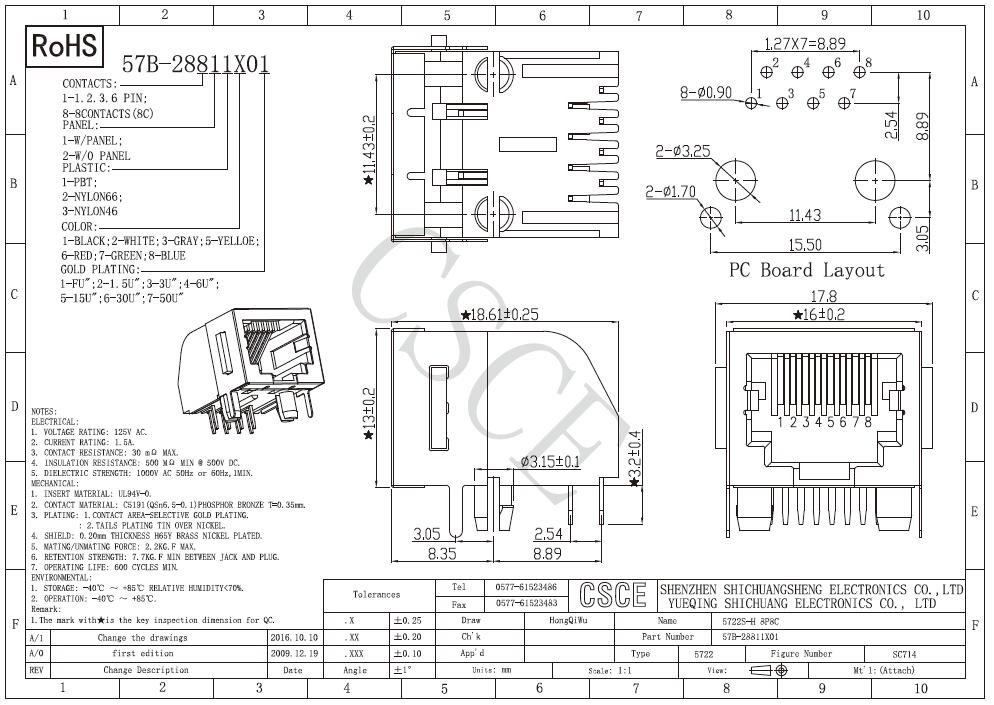

Product Drawing:
