52F Series Vertical RJ45 Jack 4 Port Operating Temperature -40℃ To 85℃ Without EMI

    Buy cheap 52F Series Vertical RJ45 Jack 4 Port Operating Temperature -40℃ To 85℃ Without EMI from wholesalers

    Buy cheap 52F Series Vertical RJ45 Jack 4 Port Operating Temperature -40℃ To 85℃ Without EMI from wholesalers
    • Buy cheap 52F Series Vertical RJ45 Jack 4 Port Operating Temperature -40℃ To 85℃ Without EMI from wholesalers
    • Buy cheap 52F Series Vertical RJ45 Jack 4 Port Operating Temperature -40℃ To 85℃ Without EMI from wholesalers
    • Buy cheap 52F Series Vertical RJ45 Jack 4 Port Operating Temperature -40℃ To 85℃ Without EMI from wholesalers

    52F Series Vertical RJ45 Jack 4 Port Operating Temperature -40℃ To 85℃ Without EMI

    Ask Lasest Price
    Brand Name : CSCE
    Model Number : 52F-14881011X01
    Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, , Western Union, MoneyGram
    Supply Ability : 150K pcs/day
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    52F Series Vertical RJ45 Jack 4 Port Operating Temperature -40℃ To 85℃ Without EMI

    52F Series With Leds 4Port Multiple-port 8P8C RJ45 Modular Jack without EMI vertical 180Degrees


    Quick Details:

    Specification:RJ45 modular jackCross Part NO:52F-14881011X01
    Mounting:Thru-hole R/ASamples:Available 2-3 Pcs
    LED:WithFiles:PDF/3D/ISG/Stp/Step/Datashee



    FAQ

    Q: Can I get some samples?
    A: Yes, sample order is available, some samples are free. and it will be freight collect payment.

    Q : How long is your lead time?
    A: Normally, our lead time is 5-7 days according to different products.

    Q: What's your payment term?
    A: We accept TT/LC/DP/DA/Paypal/Western Union/MoneyGram

    Q: Why choose our company?
    A: 1. Professional manufacturer since 2005, provide various kinds of connectors and LAN Transformer
    2. Good quality, competitive price with best service.
    3. Available for ODM/OEM order.


    Product Description:

    Retention Strength7.7KG.F MIN Between Jack And Plug
    Contact MaterialDiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
    Operation Temperature﹣40℃ to +85℃
    Housing MaterialPBT/PA66/PA46
    Mating/Unmating Force2.2KG.F MAX.
    Insulation Resistance500 MΩ MIN @ 500V DC.
    Voltage Rating125v
    Operating Life750 Cycles MIN.
    Withstand Voltage1000V AC 50Hz or 60Hz,1MIN.
    Insert MaterialUL94V-0
    Current Rating1.5A
    Contact Resistance30milliohm Max
    Storage Temperature﹣40℃ to +85℃



    Competitive Advantage:

    CSCE has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, zero defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,please do not hesitate to contact us by email or Trade Manager. We 'll get back to you in 24 hours.


    14 Years Experience

    Our company since 2005 RJ45 network connector production in the past 14 years,only focus on RJ45 network connector design and development and production and sales.


    Production Ability

    The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.

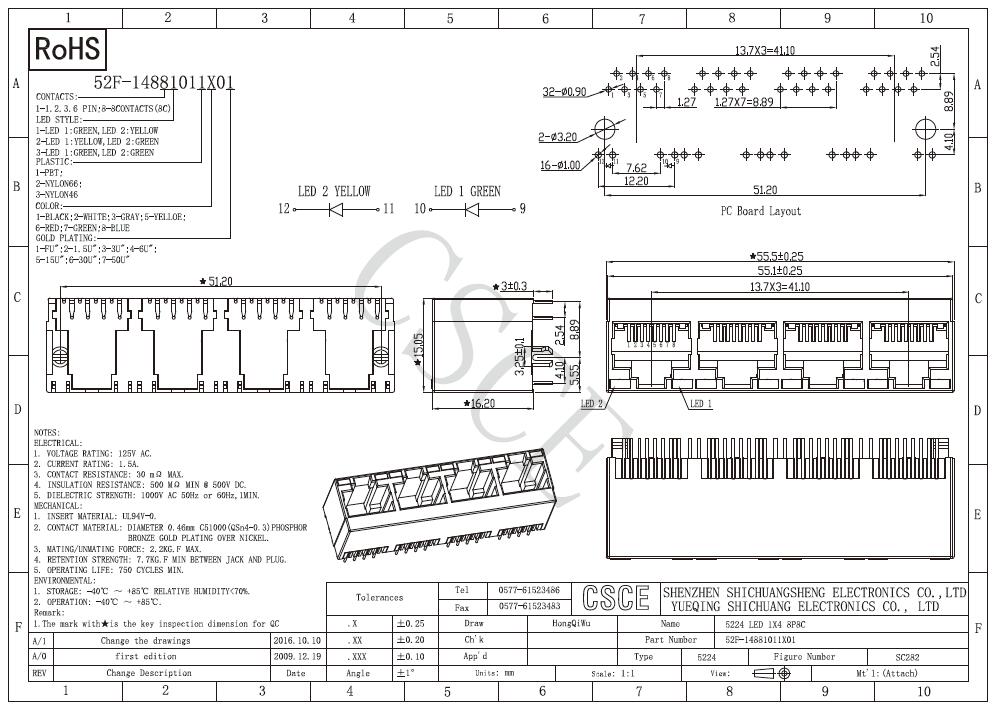

    Product Drawing:










































    Quality 52F Series Vertical RJ45 Jack 4 Port Operating Temperature -40℃ To 85℃ Without EMI for sale
